Nordson Sonoscan
GEN7™ C‑SAM® Acoustic Microscope

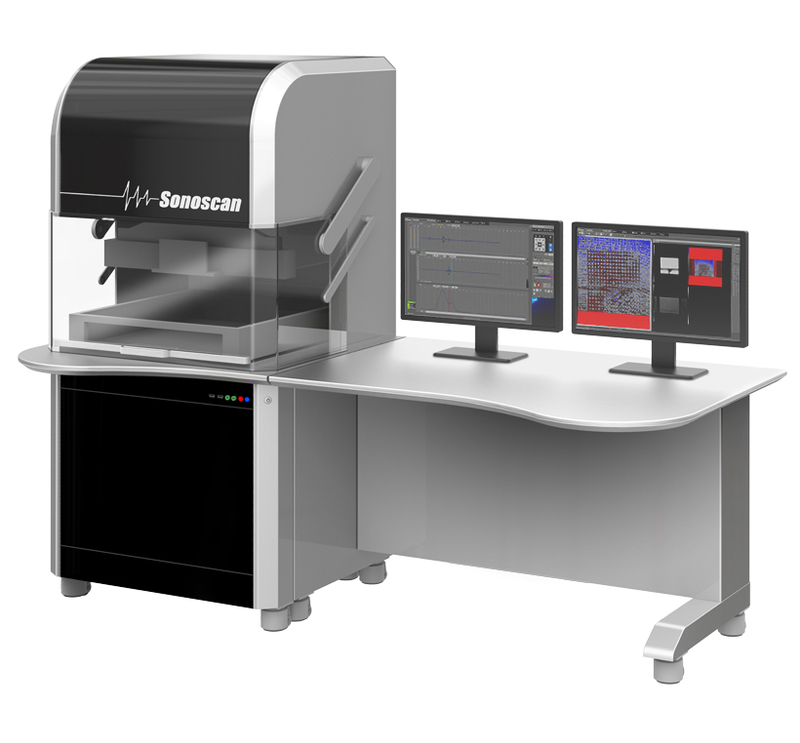

![Nordson Sonoscan: GEN7™ C‑SAM® Acoustic Microscope Three quarters front view of the Gen 7](/uploads/image/image/2983/Glam_G7___Screens.jpg)

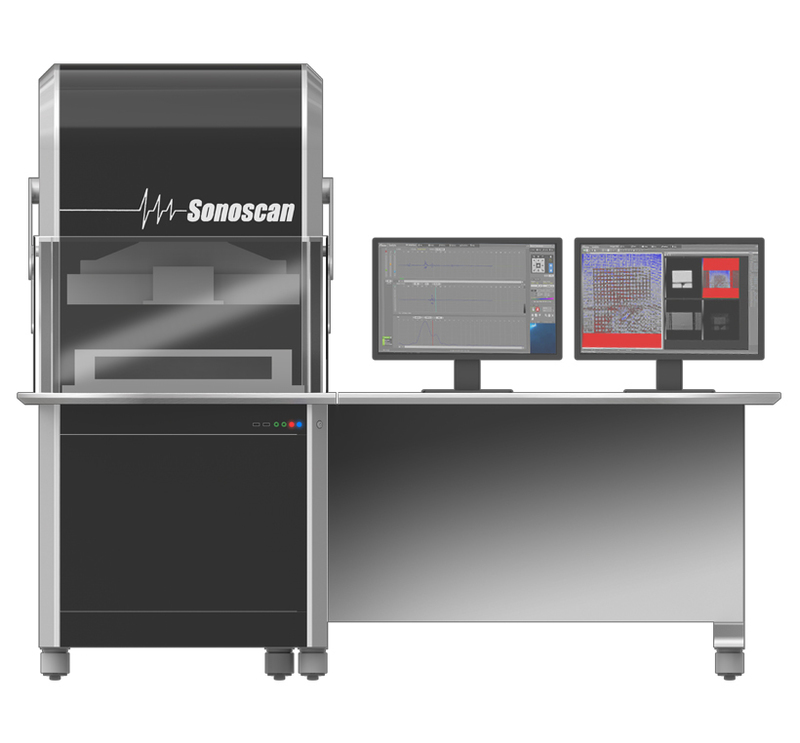

![Nordson Sonoscan: GEN7™ C‑SAM® Acoustic Microscope Front view of the Sonoscan Gen 7](/uploads/image/image/2984/Front_G7___Screens.jpg)

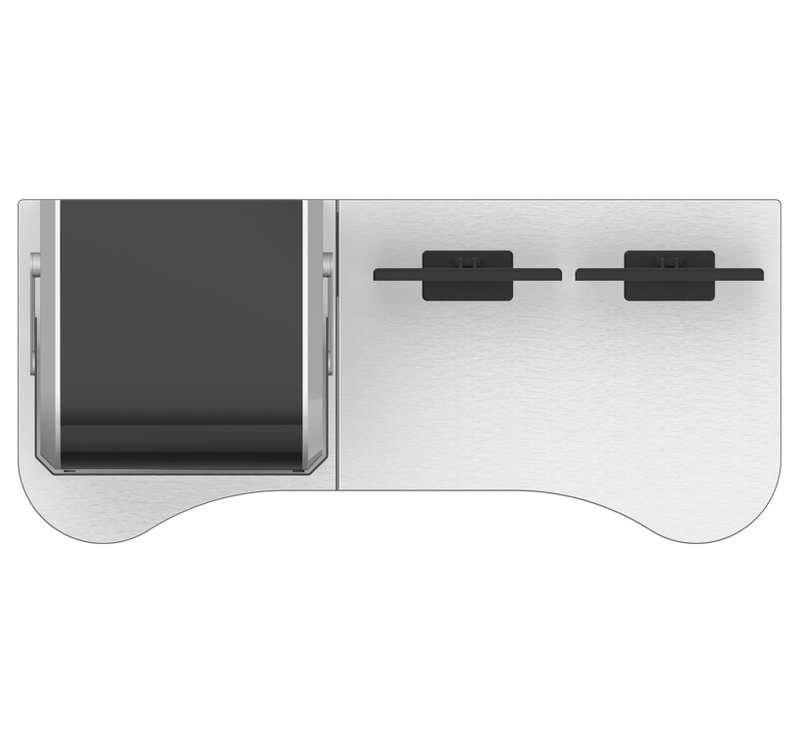

![Nordson Sonoscan: GEN7™ C‑SAM® Acoustic Microscope Top view of the Sonoscan Gen 7](/uploads/image/image/2985/Top_Gen_7.jpg)

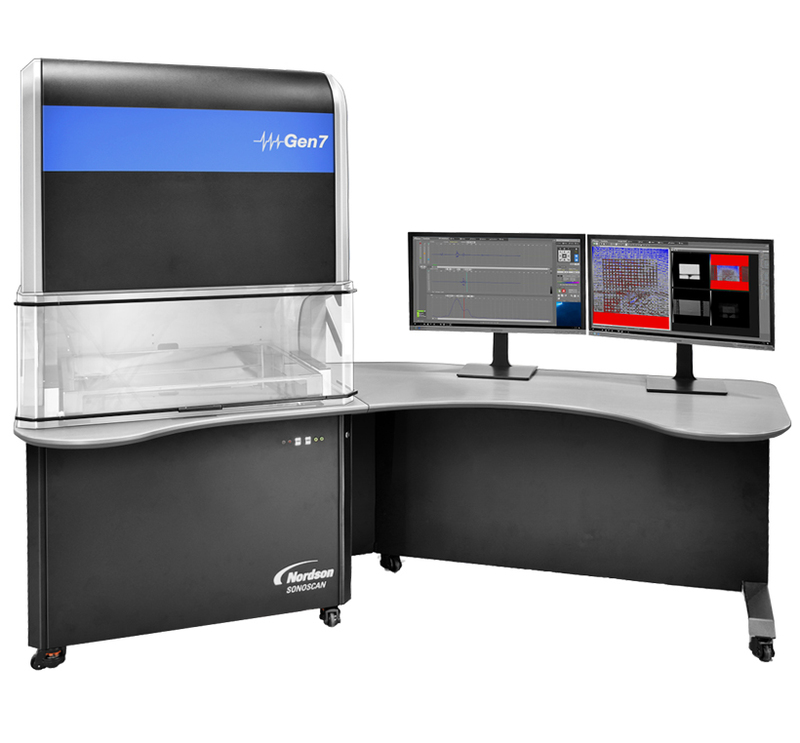

![Nordson Sonoscan: GEN7™ C‑SAM® Acoustic Microscope Production version of the Sonoscan Gen 7](/uploads/image/image/2986/Production_Version_G7.jpg)
Design Team: Cesaroni Design & Nordson Sonoscan
The design created by Cesaroni Design for the Gen 7 Acoustic Micro Imaging instrument for Nordson SONOSCAN is optimized for user efficiency. Dual twenty-eight inch 4K monitors are strategically placed near testing bay to allow a user to monitor test results and their test subject. The machined, stainless steel work surface has been incorporated into the Gen 7 and has been ergonomically contoured to allow user access without sacrificing usable table space. The fabricated sheet metal body of the Gen 7 maximizes the unit’s durability and access for servicing.
